When creating a security lab, I spend a lot of hours troubleshooting this due to a lack of articles and videos, which mostly people use Virtualbox. Hope can help this article too.
Let’s Start:
Step 1: Look first at your host network, to do this:
In your Windows environment, open the cmd > type “Ipconfig /all” > look for IPv4 Address.
Step 2: Configure our bridge in our data center network:

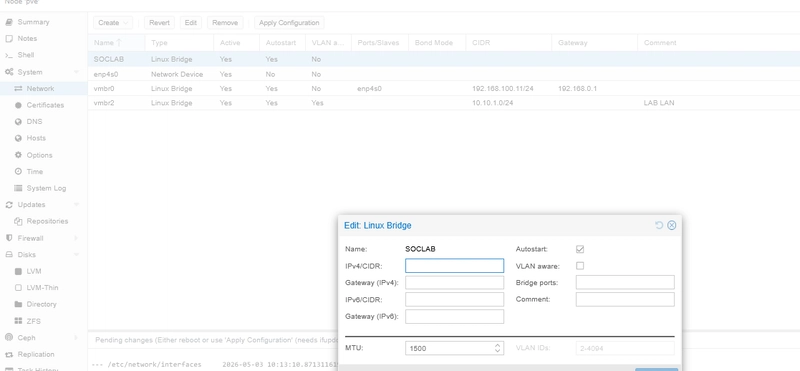

Data center > PVE > network > Linux bridge > any desired name
I got two virtual machines, one is Windows, and the other is Linux. Under the virtual machine, I assigned my windows as VM1 while Linux as VM2.
Same configuration for both VMs:
Virtual machine > Hardware > from Virtio to Intel E1000, and make sure to uncheck the firewall
Windows:
Start the virtual machine > Ctr + Win > type “ncpa.cpl” > properties > IP address you want > subnet mask > ok
Verify:
Open your PowerShell, then ping the IP address you set.
Linux:

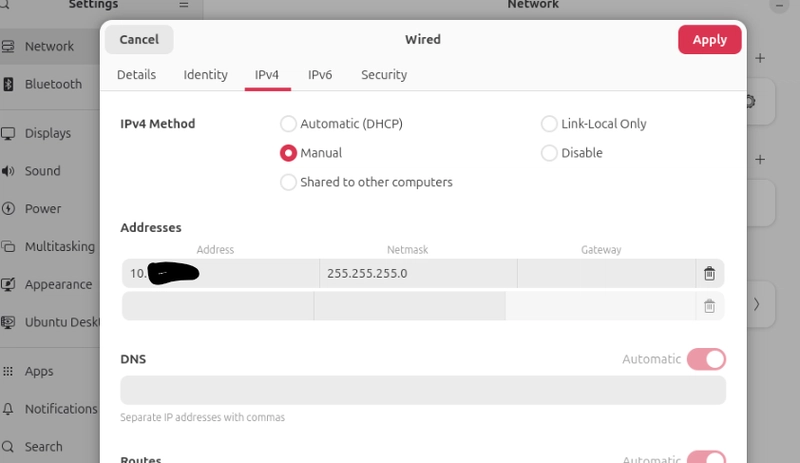

Setting > Network > gear icon > IPv4 > configure the Address and netmask > apply
If everything is okay, ping the each other, there;s no error
Now, if you ping google.com you will fail because what we set-up is to talk the two VM but Isolated.
to be able to have internet your two VM, you should add another network device then select vmbr0 which connect to your internet
note: if you dont need to connect to the internet you should disabled this then just use the isolated device network
